Magnetic Resonance Imaging (MRI) Solutions
The SIGNA™ Explorer 1.5T MRI scanner is renowned for its exceptional image quality and patient comfort. Here are some of the best images showcasing this advanced medical imaging system:

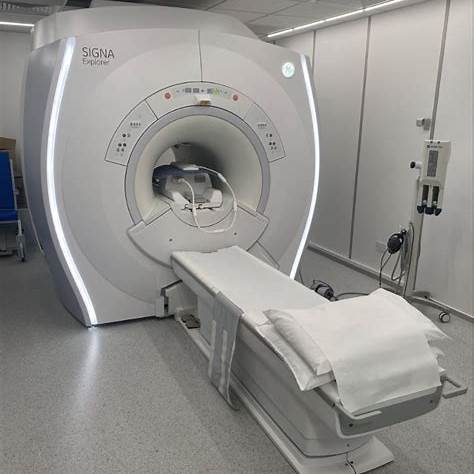

Front View of SIGNA™ Explorer 1.5T MRI Scanner
The SIGNA™ Explorer 1.5T MRI scanner is designed with compactness, efficiency, and patient comfort in mind. Below are the detailed specifications of its front view components:
- Bore Size: 60 cm wide opening
- Magnet Strength: 1.5 Tesla superconducting magnet
- Gradient Strength: 33 mT/m, Slew Rate: 120 T/m/s
- Patient Table: Motorized floating table, 500 lbs (227 kg) capacity
- Control Panel: Side-mounted operator interface with emergency stop
- Cooling System: Zero Boil-Off helium technology, front ventilation
- Dimensions (W × H × D): 157 cm × 220 cm × 220 cm
- Weight: 4,600 kg (10,140 lbs)
Side View of the SIGNA™ Explorer in a Clinical Setting
Captured in a clinical environment, this side view emphasizes the compact footprint of the SIGNA™ Explorer, making it suitable for various healthcare settings.
Features:
- Table Movement: Smooth lateral & longitudinal motion
- Cooling System: Zero Boil-Off helium technology
- Ventilation: Side air vents for heat dissipation
- Cabinet Design: Compact & space-efficient for clinical settings
- Cable Management: Concealed side panel connections for power & data
Patient Table and Bore Design of the SIGNA™ Explorer
This image focuses on the patient table and bore design, showcasing the system’s emphasis on patient comfort and ease of access.
Features:
- The floating table ensures smooth patient movement in and out of the bore.It is designed for easy patient transfer, reducing strain on both patients and operators.Features soft padding to enhance patient comfort during scans.
SIGNA™ Explorer MRI Scanner in Operation
Here, the SIGNA™ Explorer is shown during operation, illustrating its integration into a clinical workflow.
Features:
Dimensions & Weight
- Width: 157 cm (62 inches)
- Height: 220 cm (86.6 inches)
- Depth: 220 cm (86.6 inches)
- Weight: 4,600 kg (10,140 lbs)
Patient Table
- Table Type: Floating, motorized table for smooth patient positioning
- Table Height Adjustment: Low-height accessibility for easy patient transfer
- Weight Capacity: 500 lbs (227 kg)
Control Interface
- Operator Panel Location: Side-mounted control interface near the bore
- Emergency Stop Button: Easily accessible for safety
- Display Screen: Some configurations have a touchscreen control panel
Imaging Coils Compatibility
- RF Coils Supported:
- Head & Neck Coils
- Spine Coils
- Body Coils
- Cardiac Coils
- Extremity Coils
- Breast Coils
